4cbm self loading concrete mixer HONGYUAN brand hormigonera autocargablen

FOB Reference Price:Get Latest Price
$35,000.00 - $39,500.00 / Acre | 1 Acre/Acres (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HONGYUAN
Model Number:
HY400
Weight:
8300kg
colour:
yellow /white
Engine:
Cummins
Application:
civil engineering
gross weight:
8300kg
Mixing Power:
3kw/6hp
After-sales Service Provided:
Engineers available to service machinery overseas
Speed of Mixing Drum:
17r/min
Discharge Way:
Automatic
Outline Dimension:
7500*2700*4760
Charging Capacity:
4800L
Reclaiming capacity:
4000L
Working Cycle Period:
10-15min
Motor Power:
5.5kw
Water Supply Mode:
Water Pump
Supply Ability
Supply Ability:
50 Acre/Acres per Month
Packaging & Delivery
Packaging Details
nude package 1 unit in 40HQ container
Port
qingdao port
Lead Time :
7 days after confirm the order
Video Description
Product Description
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Main Features

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

  Technical Parameters

Drum capacity
5.8m³
Concrete output
3.5m³
Loading ratio
60%
Rotary
drum
Discharge mouth height 1.8 meters.Level turn 270 °
Production capacity
4 batches in an hour.16 cubic meters per hour
Engine
Yunnie engine , diesel, water cooling, 4 cylinders,92 KW
Or Cummins engine
Transmission way
Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil,
 including walking 4X4.
Climbing ability
30%
Speed
Speed 0-25 km/h (45km/h)
CAB
Ultra wide deluxe cab . ROPS type
Hydraulic system
Open feed, two gear pump participate in action.
Ioystick
A four-way hydraulic pilot with an electric control button controls the bucket.
Bucket
650L, hydraulic gate
Chute
Equipped with two removable shaft pins to increase the discharge length.
Brake
Inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump
on the independent double-return road.Negative pressure type stop brake, the front bridge is
 equipped with inner hub.
Turn
Hydraulic steering
Tyre
16/70-20 tires
Power system
24V
OIL TANK/water tank
2 x210L water tank.
Diesel tank
125L
Hydraulic tank
130L
Weight
8300KG
Dimension(L*W*H)
7500x2700x4830mm
Wheelbase
2350mm
Certifications
Detailed Images

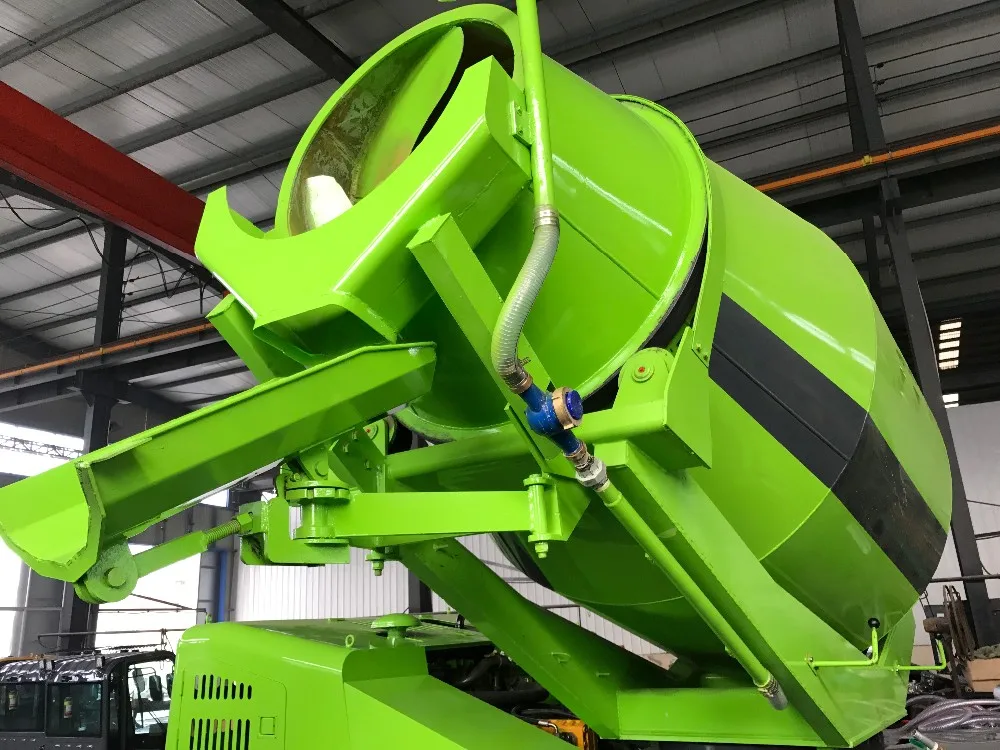

270 degree hydraulic slewing


1.8 m high discharge




Manufacturer Speed

machine in stock or 7 days to finish your order

This is the advantage for REAL MANUFACTURER

LARGE ENGINE ,TORQUE CONVERTER ,FRAME ,MIXING DRUM,HYDRAULIC CYLINDER ,MIXING MOTOR , REDUCTION BOX,AXLE IN STOCK .

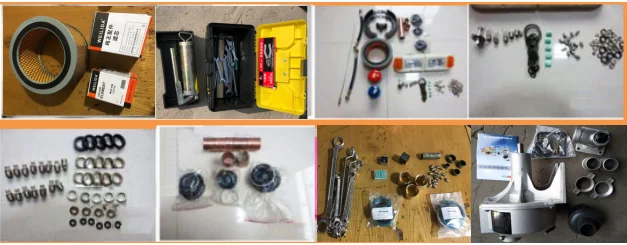

Free Spare Parts
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

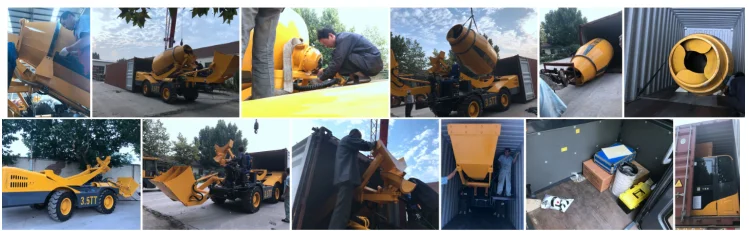

Packing & Delivery

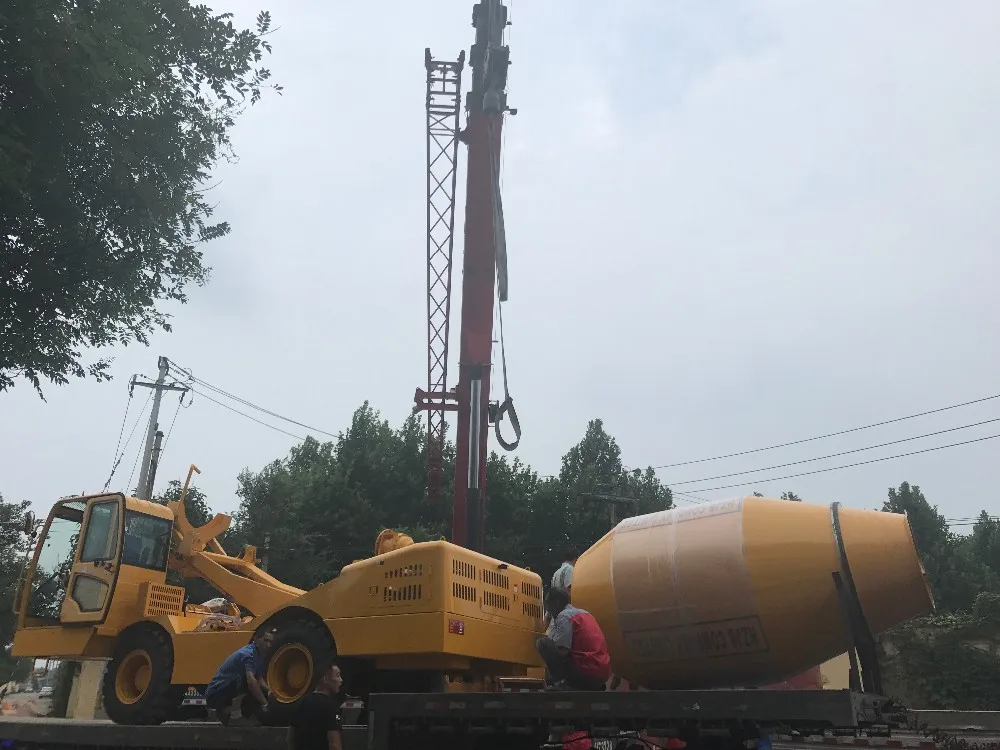

For sea and train delivery .Nude package ,1 unit load in 40HQ container ,mixing tank and cabin moved ,drive the machine directly to the container ,no need move the tyres.

For truck delivery ,drive the machine directly or under customer need .
